Home>Product> WH131 Pressure Transducer with LED Display
1
  • /UpLoad/images/7f346553-a319-4598-8b99-2d405330a94b.jpg
  • /UpLoad/images/ead8b244-ccf2-41b7-9626-fd9aec0fbf48.jpg
  • /UpLoad/images/f8facc71-b29d-4a38-868d-5fadccb14c47.jpg

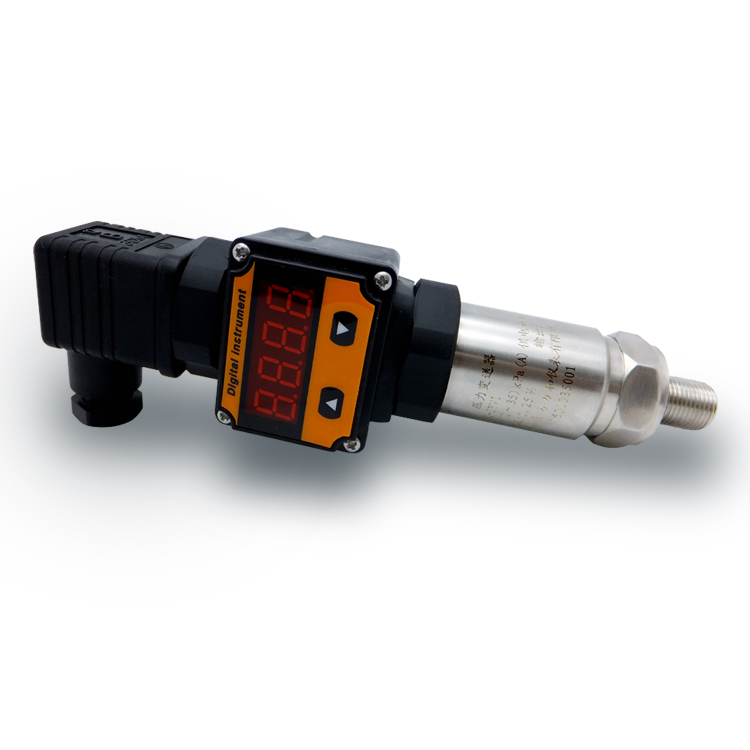

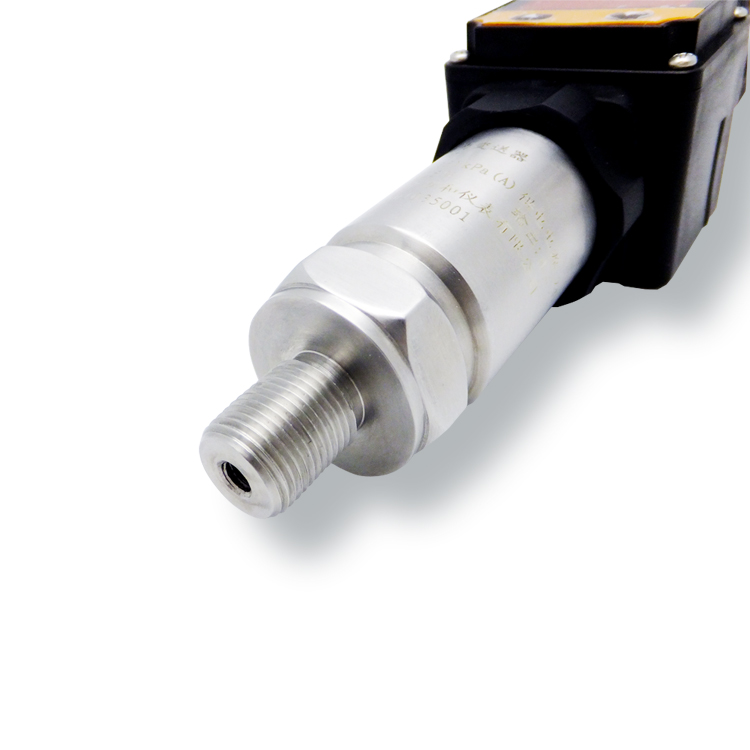

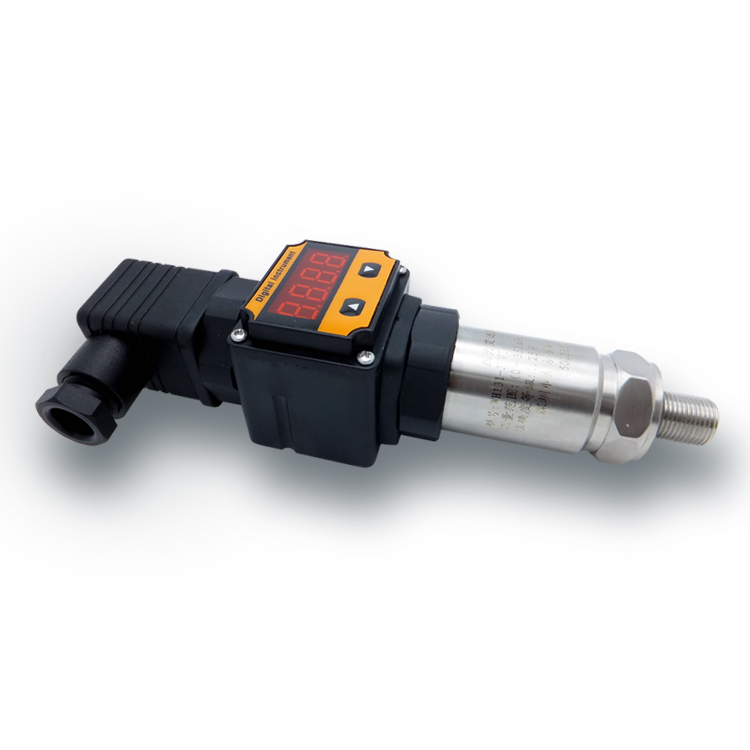

WH131 Pressure Transducer with LED Display
With high performance sensing technology, WH131 delivers high accuracy and very good durability. All-integrated design, LED displays on-site pressure. 4 relay outputs and 1 analog output.
  • Overview
  • Features
  • Application
  • Technical
  • Guide

The model WH131 plug-on display is a universal local display suitable for use with various transmitters. The transmitter must be fitted with an analogue output and a connector in accordance with DIN 43 650. The plug-on display is simply plugged in between connector and socket; it is then ready for operation. The plug-on display is user programmable. Scaling, the position of the decimal point, gate time and switch point (optional) may be set with two keys. The menu steps are output to the LED display field. The indicating unit can be rotated in 90° steps; it can be adapted to different installation process.

A compact pressure sensor with a tamperproof design that includes an LED output display that is easy to install and simple to set up using only two pushbuttons on the face of the device using VDMA menu navigation. The new sensor has a pressure range from –1 to 600 bar (–14.5 psi to 8700 psi) and features several analog and digital output configurations as well as a rotating body that is less than 31?2" in height and less than 2" wide with an easy to read digital output display that can be reversed to read upside down.
